Adding and Removing Components

Adding and Removing Components

clip_image002

Path:
File
| New
Insert
| Existing Component
Edit
| Delete

clip_image003  Located on the Standard toolbar and Product Structure Tools toolbar, respectively.

Use this to ...

  • Create a new assembly document.
  • Add existing components to an assembly.
  • Remove components from an assembly.

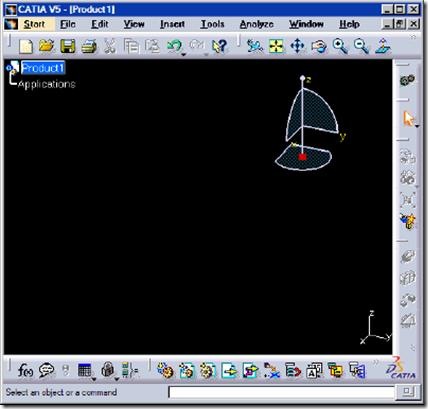

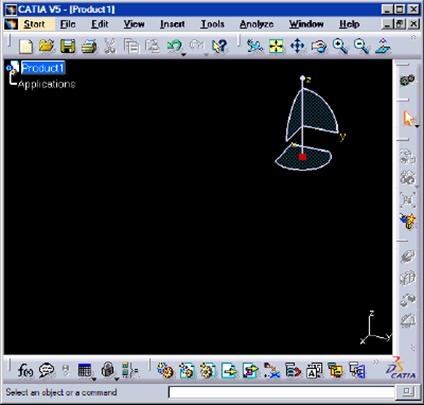

Process: Creating a New Assembly Document

  1. Select File | New. The New dialog displays.

clip_image005

2. In the List of Types list, select Product. The file type appears in the Selection box.

3. Click OK.

Process: Adding Existing Components to an Assembly

1. Select Insert | Existing Component. CATIA prompts you to select the component to which you want to add the existing component.

clip_image007

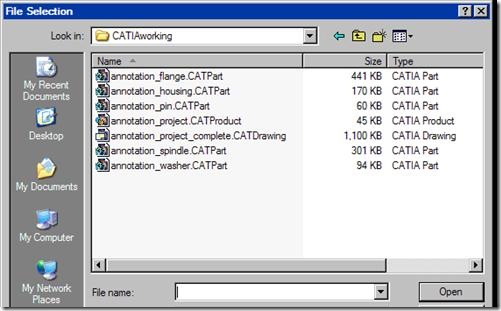

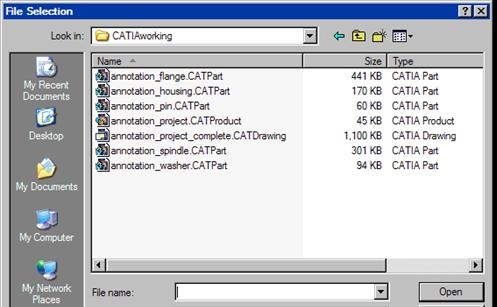

2. In the Specification Tree, pick the component to which you want to add the new component. The File Selection dialog displays.

clip_image009

3. Navigate to the required part, select it, and click Open. The part is added to the Specification Tree and displays in the Graphics window.

Process: Removing Components from an Assembly

1. In the Specification Tree, pick the component you want to remove.

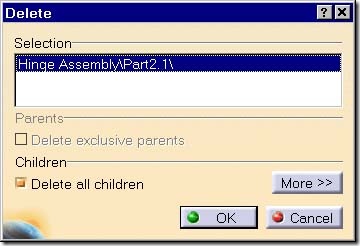

2. Select Edit | Delete. The Delete dialog displays if you remove a component that affects other constraints or parts.

clip_image010

3. Activate Delete exclusive parents, if required.

4. Activate Delete all children, if required.

5. Click OK.

Options

clip_image011

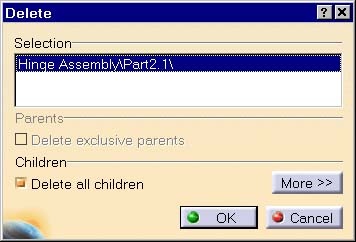

Delete Dialog

Displays when you delete a component that affects other components or constraints in the assembly.

clip_image010[1]

Delete Exclusive Parents
Removes anything used to create the originally selected component.

Delete All Children
Deletes all child components and constraints associated with the component.

clip_image011[1]

Advanced Children Management

Click More to display additional options for handling dependencies. These options let you edit parent/child relationships before you actually perform the deletion.

Tips

If you accidentally delete a component, select Edit | Undo to restore it.
