Assembly Workbench and Toolbars

Assembly Workbench and Toolbars

clip_image001

Overview: The Assembly workbench enables you to access assembly functions. The Assembly toolbars provide a quick way to launch the most commonly used functions and commands.

Assembly Workbench

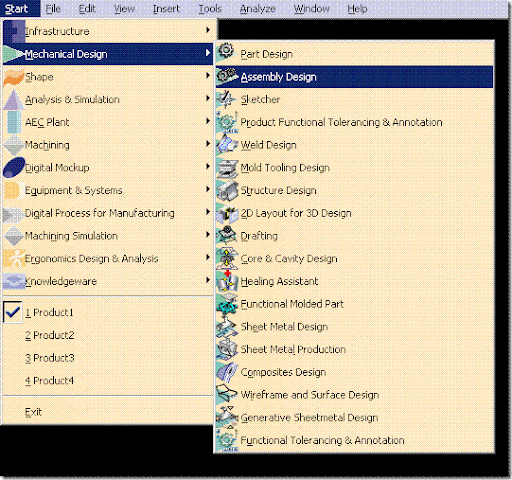

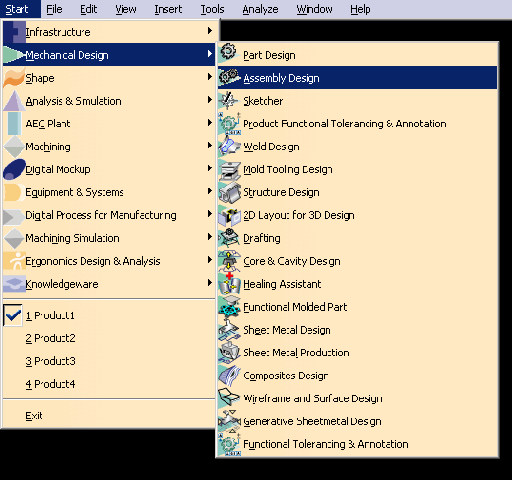

To access the Assembly workbench, select Start | Mechanical Design |Assembly Design.

clip_image002

The menu bar options (such as File, Edit, Insert and Tools) remain visible on the menu but contain Assembly Design commands instead of Part Design commands.
